0867.111.333

Thương hiệu:

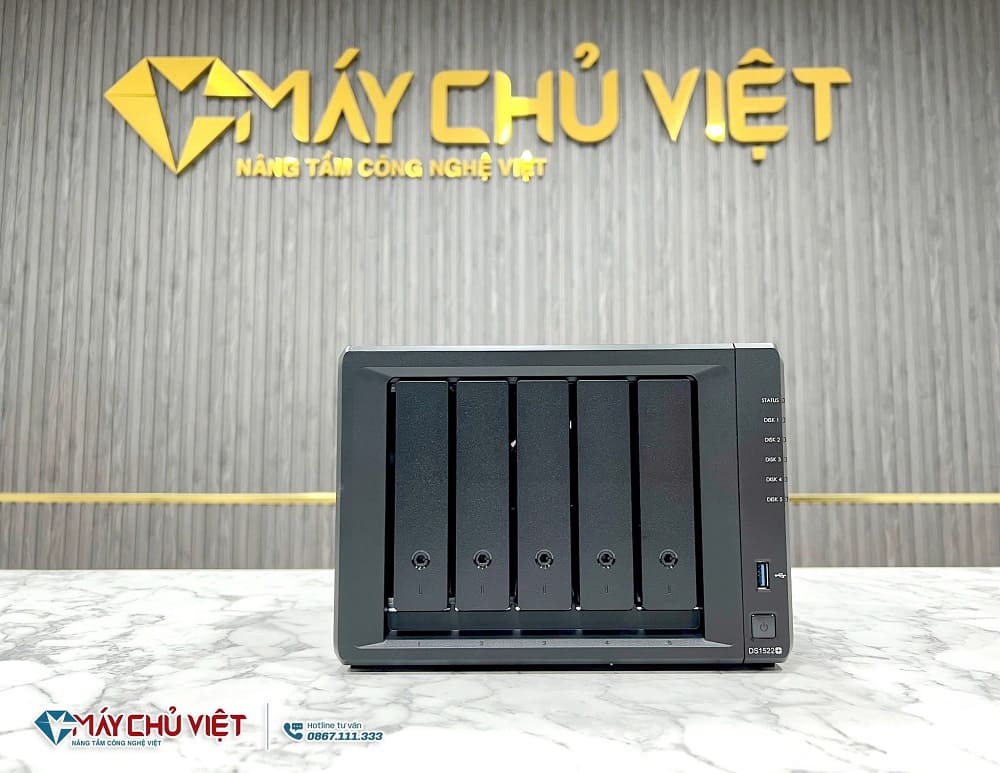

Synology DiskStation DS1522+

Giá: 18,500,000
  • Drive Bay : 5 (up to 15-bay)
  • Built-in two M.2 NVMe SSD slots
  • CPU : Dual Core 2.6 GHz (turbo to 3.1 GHz)
  • Ram : 8GB upto 32 GB
  • 10GbE Network Upgrade Slot
  • Warranty : 3Y WTY_DS1522+
  • Bảo Hành : 3 Năm

Giá chưa bao gồm VAT

Thông số kỹ thuật NAS Synology DiskStation DS1522+

CPU
CPU ModelAMD Ryzen R1600
CPU Quantity1
CPU Architecture64-bit
CPU Frequency2-core 2.6 (base) / 3.1 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory8 GB DDR4 ECC SODIMM
Memory Module Pre-installed8 GB (8 GB x 1)
Total Memory Slots2
Maximum Memory Capacity32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
Drive Bays5
Maximum Drive Bays with Expansion Unit15 (DX517 x 2)
M.2 Drive Slots2 (NVMe)
Compatible Drive Type* (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
  • M.2 2280 NVMe SSD
Hot Swappable Drive
Notes“Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

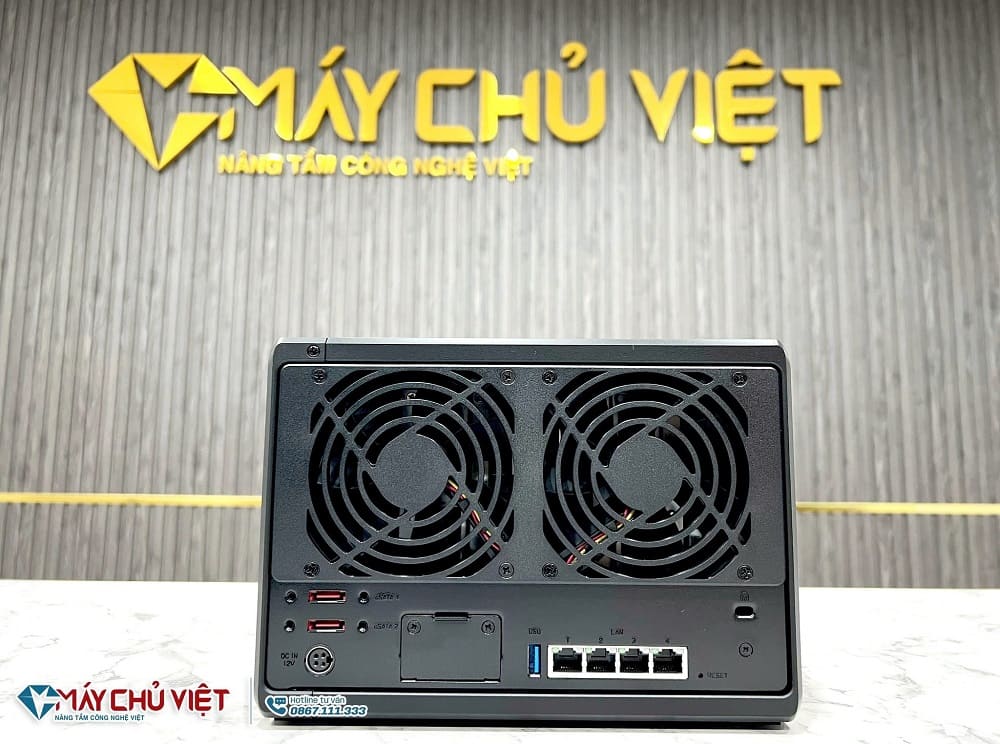

External Ports
RJ-45 1GbE LAN Port*4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port*2
eSATA Port2
Notes
  • This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
File System
PCIe Expansion1 x Gen3 x2 network upgrade slot
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Appearance
Size (Height x Width x Depth)166 mm x 230 mm x 223 mm
Weight2.7 kg
Others
System Fan92 mm x 92 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level*22.90 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter120 W
AC Input Power Voltage100V to 240V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption*52.06 W (Access)
16.71 W (HDD Hibernation)
British Thermal Unit177.64 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH

Xem thêm thông số kỹ thuật chi tiết tại đây : Click Here
