0867.111.333

Thương hiệu:

Synology RackStation RS1221+

Giá: 29,260,000
  • CPU : AMD Ryzen V1500B
  • Ram : 4 GB DDR4 ECC SODIMM
  • Drive Bay : 8 (up to 12-bay)
  • RAID Type : JBOD, RAID 0, 1, 5, 6, 10, 50, 60
  • RJ45 1GbE LAN Port : 4
  • Wake on LAN/WAN : Yes
  • PCIe Expansion : 1 x Pcie Gen3 x 8
  • Form Factor : 2U
  • AC Input Power Voltage : 100V to 240V AC
  • Warranty : 3Y WTY_RS1221+
  • Bảo Hành : 3 Năm

Giá chưa bao gồm VAT

Thông số kỹ thuật NAS Synology RackStation RS1221+

CPU
CPU ModelAMD Ryzen V1500B
CPU Quantity1
CPU Architecture64-bit
CPU Frequency4-core 2.2 GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory4 GB DDR4 ECC SODIMM
Memory Module Pre-installed4 GB (4 GB x 1)
Total Memory Slots2
Maximum Memory Capacity32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
Drive Bays8
Maximum Drive Bays with Expansion Unit12 (RX418 x 1)
Compatible Drive Type
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
Hot Swappable Drive
Notes“Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

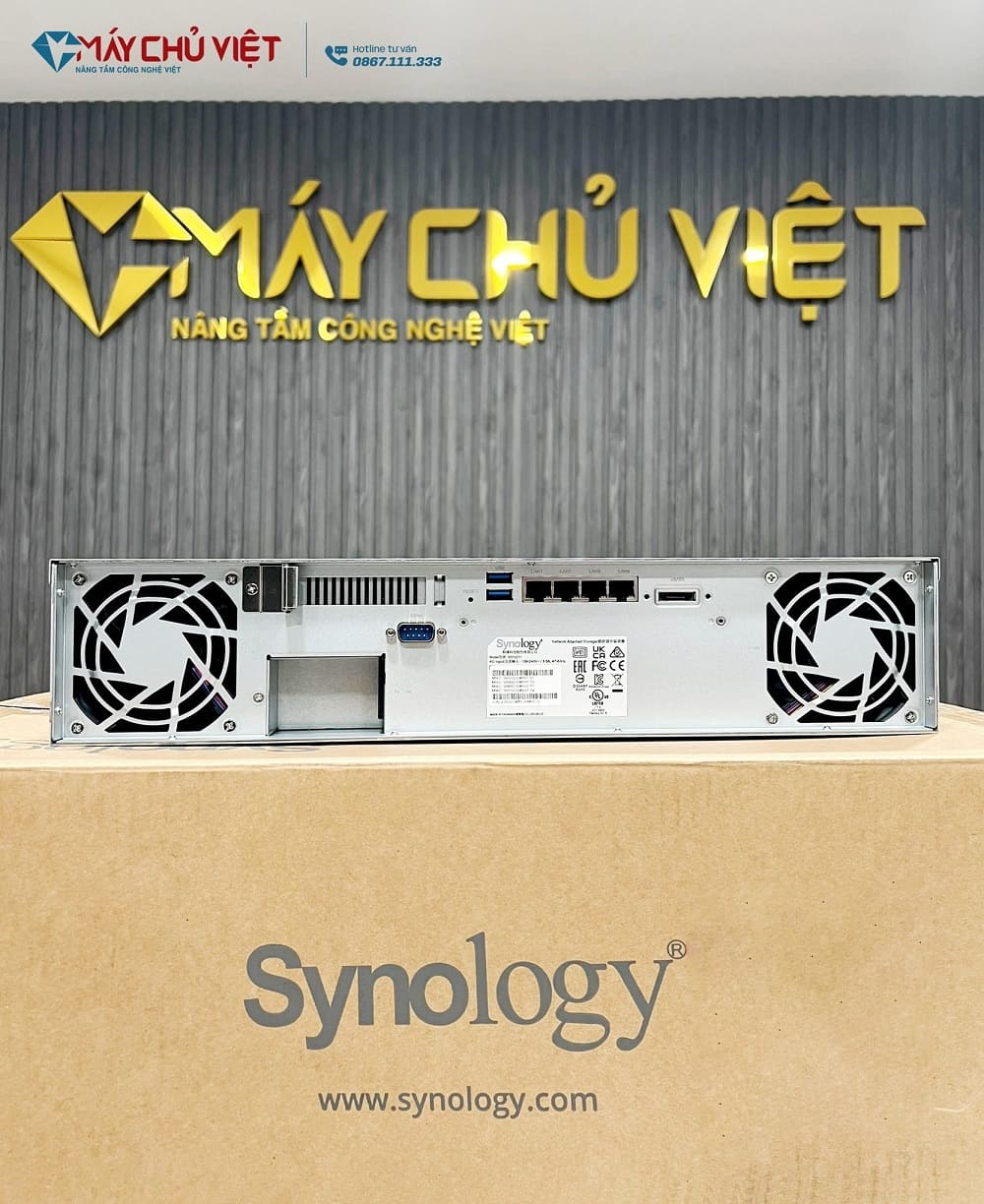

External Ports
RJ-45 1GbE LAN Port4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port*2
eSATA Port1
NotesThe USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion1 x Gen3 x8 slot (x4 link)
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
NotesexFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
Form Factor (RU)2U
Size (Height x Width x Depth)RS1221+ :88 mm x 482 mm x 306.6 mmRS1221RP+ :88 mm x 482 mm x 407.5 mm
WeightRS1221+ :6.9 kgRS1221RP+ :11.7 kg
Rack Installation Support*RS1221+ :

  • 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02)
  • 2-post 19″ rack (direct mounting)

RS1221RP+ :4-post 19″ rack (Synology Rail Kit – RKS-02)

NotesThe rail kit is sold separately
Others
System Fan80 mm x 80 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery
Noise Level*RS1221+ :25.2 dB(A)RS1221RP+ :40 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / AdapterRS1221+ :250 WRS1221RP+ :350 W
Redundant Power SupplyRS1221+ :RS1221RP+ :
AC Input Power Voltage100 V to 240 V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption*RS1221+ :49.89 W (Access) 22.64 W (HDD Hibernation)
RS1221RP+ :61.94 W (Access) 29.98 W (HDD Hibernation)
British Thermal UnitRS1221+ :170.23 BTU/hr (Access) 77.25 BTU/hr (HDD Hibernation)
RS1221RP+ :211.35 BTU/hr (Access) 102.30 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature0°C to 35°C (32°F to 95°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH

Xem thêm thông số kỹ thuật chi tiết tại đây : Click Here

Loading...
Synology RackStation RS2418RP+
  • CPU : Intel Atom C3538
  • Ram : 4 GB DDR4 Non-ECC UDIMM
  • Drive Bay : 12
  • RAID Type : JBOD, RAID 0, 1, 5, 6, 10, 50, 60
  • RJ45 1GbE LAN Port : 4
  • Wake on LAN/WAN : Yes
  • PCIe Expansion : 1 x Pcie Gen3 x 8
  • Form Factor : 2U
  • AC Input Power Voltage : 100V to 240V AC
  • Bảo Hành : 3 Năm
Synology DiskStation DS1520+
  • Drive Bay : 5 (up to 15-bay)
  • Built-in two M.2 NVMe SSD slots
  • CPU : Quad Core 2.0 GHz (turbo to 2.7 GHz)
  • Ram : 8GB
  • Warranty : 3Y WTY_DS1520+
  • Bảo Hành : 3 Năm

Giá chưa bao gồm VAT

Synology RackStation RS2421+
  • CPU : AMD Ryzen V1500B
  • Ram : 4 GB DDR4 ECC UDIMM
  • Drive Bay : 12 (up to 24-bay)
  • RAID Type : JBOD, RAID 0, 1, 5, 6, 10, 50, 60
  • RJ45 1GbE LAN Port : 4
  • Wake on LAN/WAN : Yes
  • PCIe Expansion : 1 x Pcie Gen3 x 8
  • Form Factor : 2U
  • AC Input Power Voltage : 100V to 240V AC
  • Warranty : 3Y WTY_RS2421+
  • Bảo Hành : 3 Năm

Giá chưa bao gồm VAT

Synology RackStation RS422+
  • Drive Bay : 4
  • CPU : AMD R1600 dual-core (4-threads) 2.6 GHz up to 3.1 GHz
  • Ram : 2GB
  • 2 x 1GbE RJ-45,E10G22-T1-Mini 10GbE RJ-45 Network Upgrade Module (optional)
  • Warranty : 3Y WTY_RS422+
  • Bảo Hành : 3 Năm

Giá chưa bao gồm VAT

Synology RackStation RS822+
  • Drive Bay : 4 (up to 8-bay)
  • CPU : Quad Core 2.1 GHz
  • Ram : 2GB (up to 32GB)
  • 10GbE NIC support (optional)
  • Warranty : 3Y WTY_RS822+
  • Bảo Hành : 3 Năm

Giá chưa bao gồm VAT

Synology DiskStation DS420j
  • CPU : Realtek RTD1296
  • Ram : 1 GB DDR4 non-ECC
  • Drive Bay : 4
  • RAID Type : JBOD, RAID 0, 1 ,5 ,6 ,10
  • RJ45 1GbE LAN Port : 1
  • Wake on LAN/WAN : Yes
  • Form Factor : Tower
  • Power Supply Unit / Adapter : 90W
  • Warranty : 2Y WTY_DS420j
  • Bảo Hành : 2 Năm

Giá chưa bao gồm VAT

Synology DiskStation DS120j
  • Drive Bay : 1
  • CPU : Dual Core 800 MHz
  • Ram : 512MB
  • Warranty : 2Y WTY_DS120j
  • Bảo Hành : 2 Năm

Giá chưa bao gồm VAT

Synology RackStation RS822RP+
  • Drive Bay : 4 (up to 8-bay)
  • CPU : Quad Core 2.1 GHz
  • Ram : 2GB (up to 32GB)
  • 10GbE NIC support (optional)
  • Redundant power
  • Warranty : 3Y WTY_RS822RP+
  • Bảo Hành : 3 Năm

Giá chưa bao gồm VAT

Synology RackStation RS2418+
  • CPU : Intel Atom C3538
  • Ram : 4 GB DDR4 Non-ECC UDIMM
  • Drive Bay : 12
  • RAID Type : JBOD, RAID 0, 1, 5, 6, 10, 50, 60
  • RJ45 1GbE LAN Port : 4
  • Wake on LAN/WAN : Yes
  • PCIe Expansion : 1 x Pcie Gen3 x 8
  • Form Factor : 2U
  • AC Input Power Voltage : 100V to 240V AC
  • Bảo Hành : 3 Năm
Synology RackStation RS2821RP+
  • Drive Bay : 16 (up to 28-bay)
  • CPU : Quad Core 2.2 GHz
  • Ram : 4GB RAM (up to 32GB)
  • 10GbE NIC & M.2 SATA SSD support (optional)
  • Redundant power
  • Warranty : 5Y WTY_RS2821RP+
  • Bảo Hành : 5 Năm

Giá chưa bao gồm VAT
